T-Max Dual Battery System with display 12V

Dual Battery System with display 12V

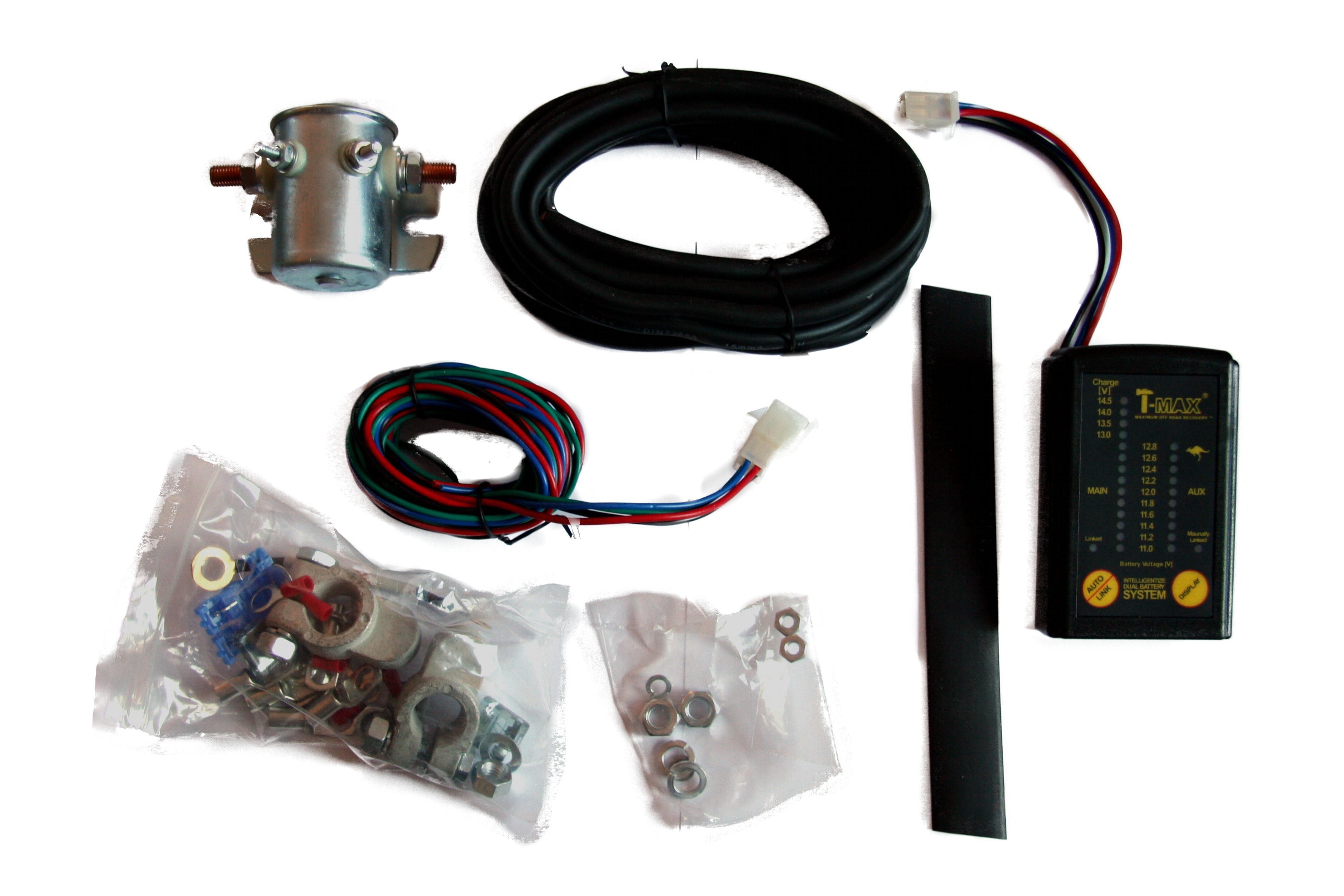

Set includes:
- The monitor display: operation mfrome AUTO/LINK (Manual)
Display range battery voltage main/aux (11-12,8V).
Display range battery charging voltage : (13-14,5V)
- Selenoid
- Connectors, misc. hardware

Specification
Consumption(stand by): 5mA
Consumption max. Display active (45s): 150mA
Accuracy: +/-2%
Consumption on-state:  0,8A
Sealing standard version:  IP40
Operating temperature:  -20oC/+60oC
Relay continuous load current: 250A

This battery monitor has been designed for dual battery system. The monitor displays the stored energy of both batteries and the charge voltage while charging them with an alternator, a solar panel or any other source.

AUTO: The batteries are automatically linked for charging and isolated when discharging.

MANUAL: In emergency situations a manual override function to link the batteries can be actuated.

Serial number: DBS02

12 months limited warranty
warranty is issued by the exclusive importer and representative in Poland.
